Understanding the Hidden Champions of Manufacturing
In the world of manufacturing and automation, much of the spotlight falls on the major players—CNC machines, robotic arms, and automated assembly lines. Yet, behind these giants are unsung heroes quietly ensuring that every part is precisely where it needs to be: rotary indexers and positioners. These devices may not grab headlines, but they play a crucial role in the efficiency and accuracy of countless processes across industries. At the heart of many of these devices lies a crucial component: the globoid worm gear. Let’s explore these essential tools, how they work, and why worm gears are vital to their success. First, let's take a look at what "rotary indexers" and "positioners" are...
What Are Rotary Indexers and Positioners?
Rotary indexers and positioners are specialized devices
that help orient and position workpieces with precision and reliability. Here’s
a closer look at each:

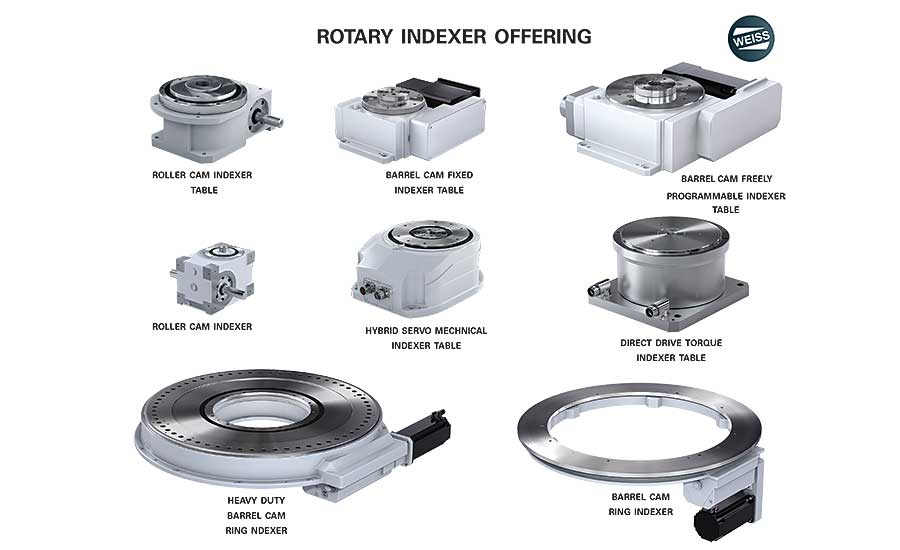

- Rotary Indexers are devices designed to rotate a workpiece to a specific angle with
exceptional accuracy and hold it in that position. Perfect for operations
like drilling or machining where precise angular positioning is required.
https://www.assemblymag.com/articles/94217-how-to-properly-size-and-apply-a-rotary-indexer

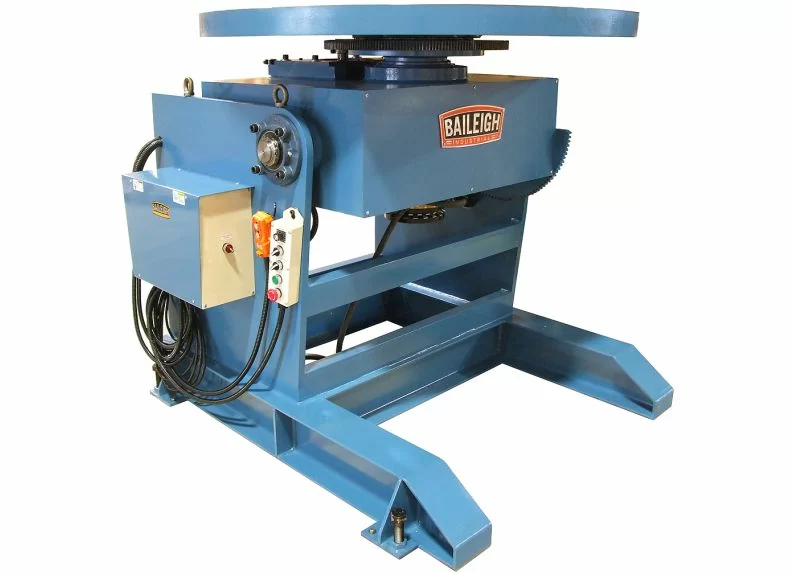

- Positioners, meanwhile, provide more dynamic, multi-axis movement. They can
rotate, tilt, and reorient a workpiece, making them ideal for welding,
assembly, and inspection tasks where accessibility from multiple angles is
critical.
https://baileigh.com/metalworking/welding-equipment/welding-positioners/rotary-positioners/welding-rotary-table-wp-11000
But what makes these tools so effective at their jobs?
Much of the credit goes to the globoid worm gears integrated into their
designs.
The
Role of Globoid Worm Gears in Rotary Indexers and Positioners
Globoid worm gears—also known as hourglass or double-enveloping worm gears—are a special type of worm gear
designed to transmit power efficiently while ensuring smooth, precise motion
control. Their unique, concave shape allows them to engage more teeth on the
mating gear (the worm wheel) at any given time, providing greater torque
transmission, smoother operation, and minimal backlash. These properties make
them ideal for use in both rotary indexers and positioners.
- High Torque and Smooth Motion: In both rotary indexers and positioners, the need
for high torque and smooth, controlled movement is paramount. Globoid worm
gears provide this by maximizing the contact area between the worm and the
worm wheel, ensuring efficient power transmission and minimizing vibration
or jerky movements.
- Enhanced Accuracy and Repeatability: The design of the globoid worm gear reduces
backlash—the unwanted play between gear teeth that can lead to positioning
errors. This is particularly important in applications where high
precision and repeatability are critical, such as in CNC machining or
automated assembly lines.
- Compact Design: Globoid worm gears also allow for more compact designs due to their
high torque capacity relative to size. This is beneficial in tight spaces
where the positioning equipment must be integrated into larger machines or
systems.
Key
Differences Between Rotary Indexers and Positioners
To understand when to use a rotary indexer versus a
positioner, it helps to break down their core differences:
- Purpose and Function:
- Rotary Indexers: Designed for precise angular movement, rotary
indexers rotate a workpiece to a specific position and hold it there.
Globoid worm gears inside these devices ensure the necessary torque and
precision to handle repetitive tasks with tight tolerances.
- Positioners: Provide versatile, multi-axis movement. They handle larger,
heavier parts, allowing them to be rotated, tilted, and oriented in
various directions. Here, too, globoid worm gears are crucial, offering
the torque and smooth motion needed to manipulate heavy loads safely and
accurately.
- Type of Motion:
- Rotary Indexers: Operate in fixed steps or increments, moving a
set number of degrees before stopping at each position. The accuracy of
these steps is directly linked to the performance of the globoid worm
gear, which reduces backlash and ensures consistent positioning.
- Positioners: Offer continuous, flexible motion along multiple axes. The torque
and smooth control provided by globoid worm gears allow positioners to
adjust dynamically, supporting complex, multi-angle tasks.
- Precision and Repeatability:
- Rotary Indexers: The precision of a rotary indexer depends heavily on the globoid worm gear's ability to minimize backlash and maintain consistent engagement. This guarantees that each movement is repeatable and accurate.
- Positioners: While also precise, positioners rely on the strength and smooth
operation of the globoid worm gear to handle various loads and
orientations without losing positional accuracy.
Types
of Rotary Indexers and Positioners and Their Connection to Globoid Worm Gears
Let’s explore how globoid worm gears enhance specific
types of indexers and positioners:
1.
Trunnion Positioners: Heavy-Duty Applications with High Torque Needs
Trunnion positioners are designed to handle large, heavy workpieces and require high torque to rotate these parts smoothly and safely. The globoid worm gear excels here by providing the necessary torque to rotate heavy loads without slipping or backlash. This ensures safe handling and precise positioning, which is crucial in applications like heavy fabrication and welding.
2. Cam
Indexers: Speed Meets Precision
Cam indexers require smooth, rapid, and precise movements. The globoid worm gear is key to achieving these goals by ensuring smooth transitions between positions without backlash. This allows cam indexers to maintain high accuracy even at rapid speeds, which is vital in high-speed production environments.
Why
Globoid Worm Gears Matter
Globoid worm gears are a foundational element in both
rotary indexers and positioners, enabling them to perform their roles
effectively. Their design offers several key benefits:
- Minimized Backlash: Reducing play between gear teeth ensures precise
positioning, which is critical for both indexers and positioners.
- High Torque Transmission: The unique geometry of the globoid worm gear
allows for greater torque transmission, which is essential for handling
heavy loads or achieving high precision.
- Smooth Operation: Enhanced contact between gear teeth results in
smoother, more controlled movements, crucial for applications that require
dynamic positioning or high-speed operations.
Recognizing the Hidden Value of Globoid Worm Gears
While rotary indexers and positioners are essential for precision manufacturing, their effectiveness is largely dependent on the quality of the components within them, particularly the globoid worm gears. These gears enable the precise, smooth, and reliable movement needed for a wide range of industrial applications. So, the next time you think of precision tools in manufacturing, remember the critical role played by these unique gears in keeping everything running smoothly.
